TFF1008P ( 8-Port 10/100Mbps Desktop Switch )

Giá bán:

Call

- Cổng 1-4 là phù hợp với IEEE 802.3at / tiêu chuẩn af và cung cấp điện năng lên đến 40W
- Các PoE tối đa là 58W
- khoảng cách truyền dẫn lên đến 150m
- 8 cổng RJ45 tự động cảm nhận tốc độ 10/100/1000Mbps với bộ dò chéo tự động MDI/MDI-X

HỖ TRỢ TRỰC TUYẾN
Bộ phận kinh doanh
0904115652 ( Mr. Phong )
0904844944 ( Mr. Tùng )
0364321495 ( Mr. Cường )
Hỗ trợ kỹ thuật
0913336883 ( Mr. Hải )
TEF1008P

8-Port 10/100Mbps Desktop Switch with 4-Port PoE

Overview

TEF1008P

Descriptions

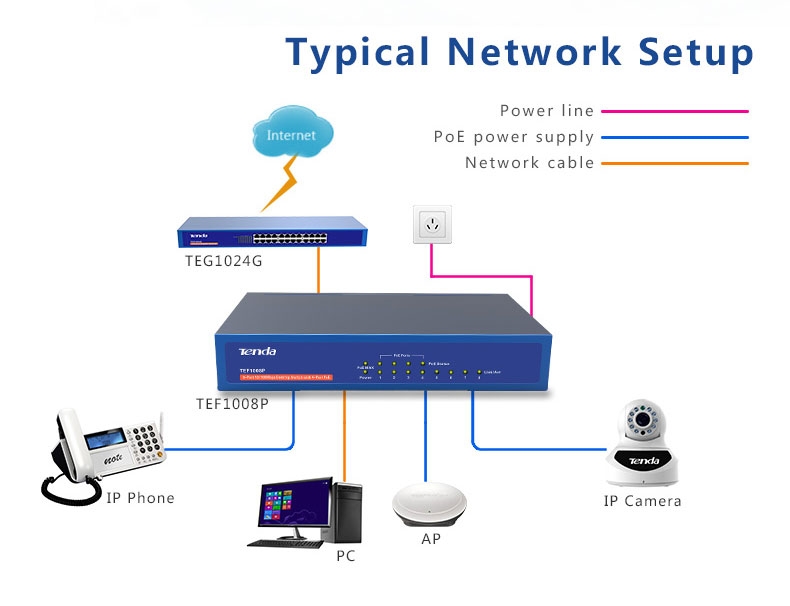

TEF1008P is a 8-Port 10/100Mbps Desktop Switch with 4-Port PoE that requires no configuration. 4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Features

  • Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at standard
  • 8 Auto-Negotiation RJ45 ports , supports Auto MDI/MDIX, (port-1 to port-4) of the switch supports IEEE802.3at/af standard
  • 1.6Gpbs backbound bandwidth, 1.19Mpps packet forwarding rate, support non-blocked wire speed forwarding

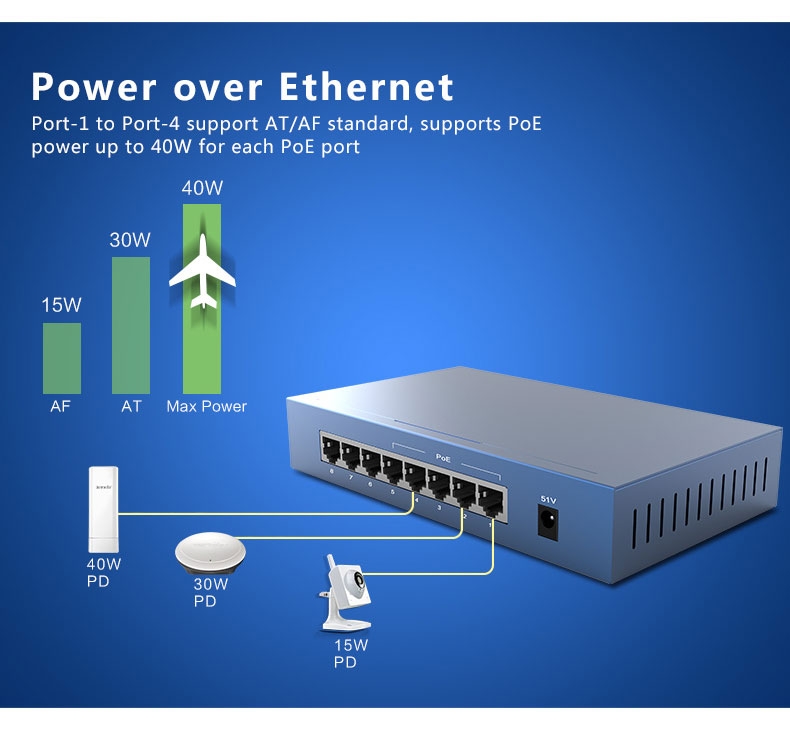

  • Supports PoE power up to 40W for each PoE port
  • Adopts category 5e cable, power supply and transfer distance up to 150m
  • Automatically adjust the power supply powered devices

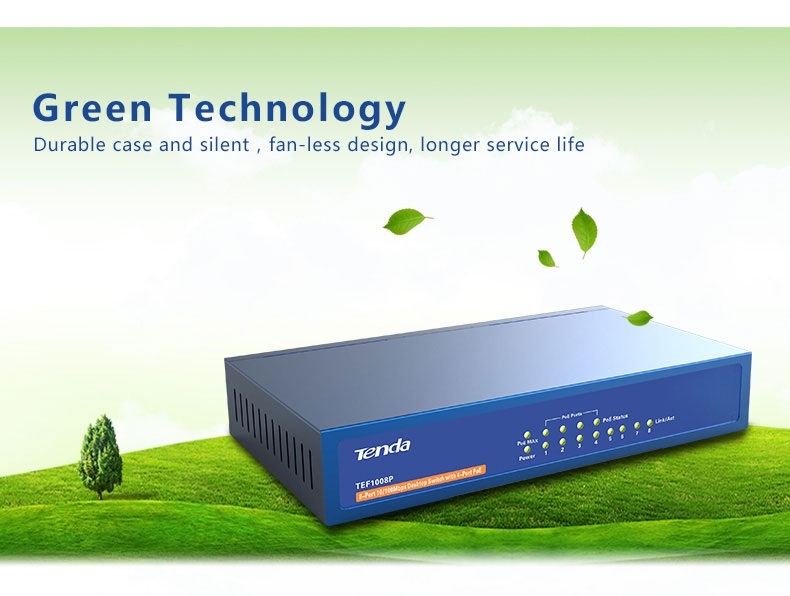

  • Durable case and silentfan-less design, longer service life

TEF1008P

TEF1008P
 TEF1008P

TEF1008P
  • Tiêu chuẩn& Giao thức: IEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at
  • Giao diện: 8*10/100Mbps auto-negotiation ports, port1 to port4 support IEEE802.3 at/af standard
  • Phương tiện kết nối mạng: 100BASE-TX: UTP category 5, 5e cable (≤150m)
  • Phương pháp truyền dữ liệu: Store-And-Forward
  • Chỉ báo: 8*Link/Act per device, 4*PoE Status, 1*Power, 1*PoE-MAX
  • Nguồn đầu vào: External Power Supply: DC: 51V/1.25A
  • Công suất tiêu thụ: 2 Watts (max. no PD connected)60 Watts (max. with 58W PD connected)
  • Kích thước: 186.7mm*106.7mm*33.3mm (L*W*H)
  • Tổng nguồn kết nối qua Ethernet: 58W
